Setting up IKEv2 VPN access through Blackberry Z10 and Blackberry Q10 Mobile Phones.
1. Download the Certificate file
Download our Blackberry certificate file directly to your handset Click here to download our certificate file.
2. Blackberry Settings
Click onto the settings icon on your Blackberry
3. Security & Privacy
Go to 'Security and Privacy' from the list of System Settings.
Click onto the 'Certificates' location.

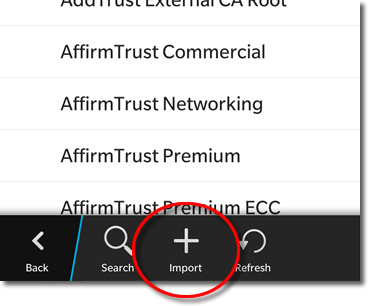

Click onto the 'Import' icon.
6. Select certificate

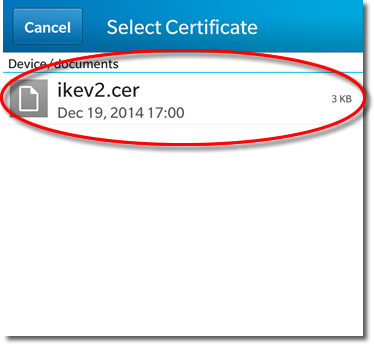

Select the certificate you downloaded earflier.
Confirm the import by clicking onto the 'Next' button.

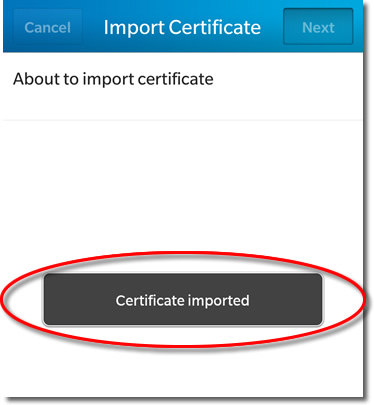

You will receive a 'Certificate Imported' confirmation if the install is successful.
9. View Certificate

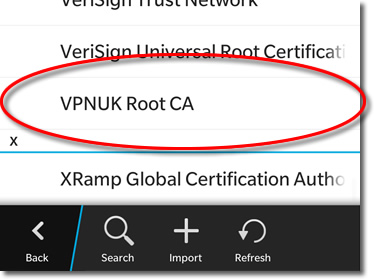

You should now be able to see the 'VPNUK Root CA' certificate in your certificate store.
10. Network and Connections

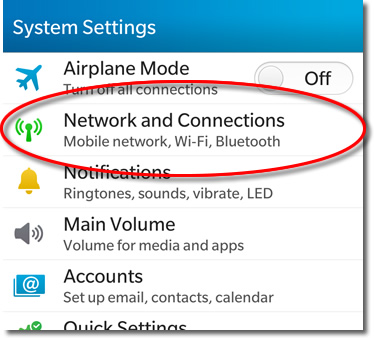

Go back to 'Network and Copnnections' from the system settings menu.
From the list of Networks select the option for 'VPN'.
12. VPN Profile
Select 'Add VPN Profile'.
13. Profile Name
Enter any 'Profile Name'.

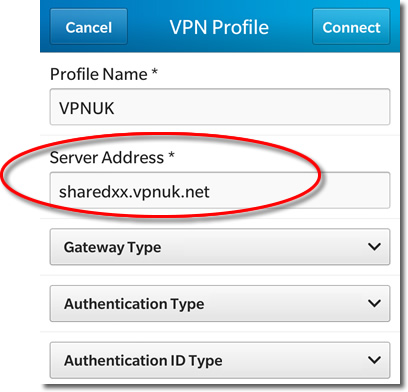

14. Server Address
Enter your chosen 'Server. You can find the server address in your 'Welcome to VPNUK' email and also in your client control panel on the VPNUK website.
15. Gateway Type
Enter the Gateway Type as 'Generic IKEv2 VPN Server'.
16. Authentication Type
Enter the Authentication Type as 'EAP-MSCHAPv2'.
17. Authentication ID Type
Enter the Authentication ID Type as 'Email Address'.
Enter your VPNUK login username into all three of the 'Authentication ID, MSCHAPv2 EAP Identity and MACHAPv2 Username' fields.
Enter your VPNUK Password into the 'MSCHAPv2 Password' field.
20. Gateway Auth Type
Enter the Gateway Auth Type as 'PKI'.
21. Gateway Auth ID Type
Enter the Gateway Auth ID Type as 'Fully Qualified Domain Name'.
22. Gateway Auth ID
Enter the same server address as you entered into the 'Server Address' field as the 'Gateway Auth ID '.
Choose the Gateway CA Certificate 'VPNUK Root CA'.
Toggle the 'Perfect Forward Secrecy' to 'On'.
25. Save Profile
Click onto the 'Save' icon.
26. Connect to VPNUK
Click onto the newly created VPNUK connection to connect to the VPN.
You should now be connected to the VPNUK Service.
