Setting up IKEv2 VPN access under Windows 8.
1. Download and extract the Certificate file
Download and extract our certificate file to a good location on your computer.
Click here to download our certificate file.
2. Open Microsoft Management Console

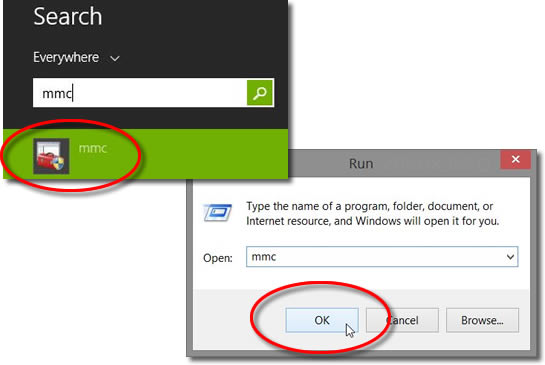

Go to your Windows 8 metro screen and search for 'mmc' or go to Start > Run and Open 'mmc'.
3. Add/Remove Snap-in
From the [Console Root] click onto 'File' and select the option to 'Add/Remove Snap-in'.
4. Add Certificate
Select 'Certificates and click onto the 'Add' button.
5. Certificates Snap-in
Check the option to always manage certificates for 'Computer account'.
6. Select Computer
Ensure the snap-in will always manage 'Local computer' then click onto the 'Finish' button.
Click onto the 'OK' button.
8. Import Certificate
From the 'Console Root' expand 'Certificates (Local Computer)' option, then expand 'Trusted Root Certification Authorities' and right click onto 'Certificates' then choose 'All Tasks' > 'Import'.
9. Import Wizard
The certificate will now be imported, click onto the 'Next' button.
10. Locate certificate
You now need to seclect the certificate file, click onto the 'Browse' button.
11. Select certificate
Navigate to the location of the ikev2.crt certificate that you have extracted and import it.
12. Confirm selection
Confirm the selection by clicking onto the 'Next' button.
13. Certificate store
Ensure all certificates are placed in the following certificate store 'Trusted Root Certification Authorities' then click onto the 'Next' button..
14. Conpleting the import
Click onto the 'Finish' button to complete the certificate import.
15. Confirm import
From the 'Console Root' expand 'Certificates' then 'Trusted Root Certification Authorities' and click onto 'Certificates'. You should now see the 'VPNUK Root CA' certificate in the list of available certificates.
16. Close the Console Window
You can now close the console window.
17. Don't Save
A prompt will open asking if you would like to 'Save console settings to Console1', select 'NO'.
18. Open Network and Sharing Centre
Right click onto your networking icon in the sys tray and select 'Open Network and Sharing Centre'
19. Set up the IKEv2 VPN connection
Click on 'Set up a new connection or Network'.
20. Choose the Connection Type
On the next screen, click on 'Connect to a workplace' then click 'Next'.
21. Using an Existing Connection (if it appears
If you are asked if you would like to use an existing connection choose 'No, create a new connection' or 'Use my Internet connection (VPN)'.
22. Enter the server information
Enter the server name that corresponds to the certificate you installed into the Internet address field and a friendly name for this connection into the Destination name field. Clients on the Dedicated IP platform should enter the server their unique IP address corresponds to. Place a tick in the checkbox labeled 'Remember my credentials', then click the 'Create' button. You can find the server information in your 'Welcome to VPNUK' email or in the 'Client CP' on the VPNUK website.
NOTE: Please only enter the server name, DO NOT enter the IP address of the server.
23. Open Networking
Click onto the networking icon in the sys tray.
24. Connection Properties
Right click onto the VPNUK connection and select 'View connection properties'.
25. Select Options
In the properties window, you should see the server you setup ealier, click onto the 'Options' tab.
26. Options - Remember credentials.
Select the 'Remember my credentials' option, then click onto the 'Security' tab.
27. Choose The 'Type of VPN'
From the dropdown menu choose the '(IKEv2)' option..
Ensure the Authentication is using (EAP) is checked and set the drop down option to 'Microsoft Secured Password (EAP-MSCHAPv2)'.
29. Click OK
Click onto the 'OK' button to save all the changes.
30. Connect to VPNUK
You have now configured the VPNUK PPTP connection on Windows 8. Click onto the active conection from the taskbar which will open the Networking menu.
31. Click Connect
Select the VPN connection that you would like to connect to and click 'Connect'.
The first time you connect to the VPN you will be asked to enter your login username and password. Once the details are entered click OK to connect!
ISP DNS Hijack / DNS Leak Protection
Some ISPs will attempt to hijack your DNS settings which hinders the VPN connection from functioning correctly. If you find that your VPNUK connection does not route your traffic correctly you can try changing your Public DNS server to the VPNUK DNS server or to an alternative like Google DNS.
1. Right click onto your network connection icon in the sys tray and select 'Open Network and Sharing Centre'.
2. Go to 'View Network Adapters' from the left hand menu.
3. Right click onto your active Ethernet or Wireless Connection and select 'Properties'.
4. Double click onto 'TCP/IPv4' from the list of items.
5. Enter a DNS IP into the DNS server box. Google DNS is 188.8.131.52. VPNUK Public DNS is: 184.108.40.206
The network connection between your computer and the
VPN server could not be established because the remote
server is not responding. This could be because one of the
network devices (e.g, firewalls, NAT, routers, etc) between
your computer and the remote server is not configured to
allow VPN connections. Please contact your Administrator
or your service provider to determine which device may be causing the problem.
